- 主图来源: 自主实拍图
| 品牌：LANWIN | 型号：LW-5TO1 | 类型：HDMI切换器 |
| 支持系统：无 | 分辨率：1080P | 远程唤醒：不支持远程唤醒 |
| 电源管理：支持电源管理 | OEM：可OEM | 接口：HDMI |

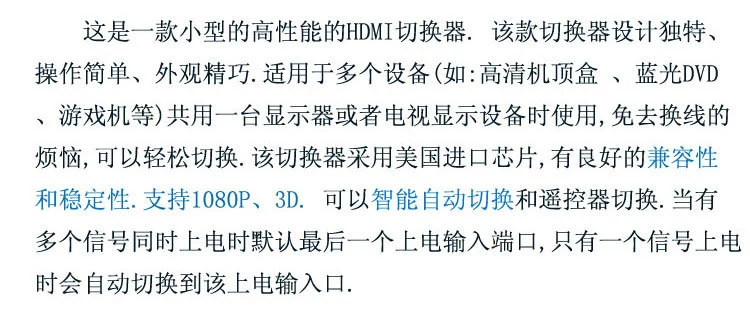

该切换器支持 4K*2K 支持画中画PIP 多画面显示

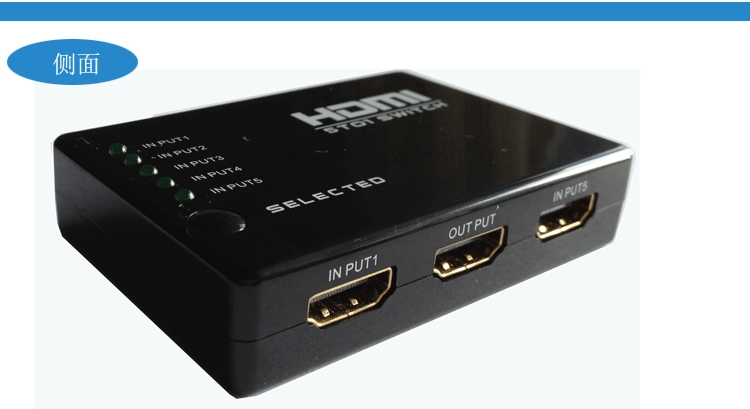

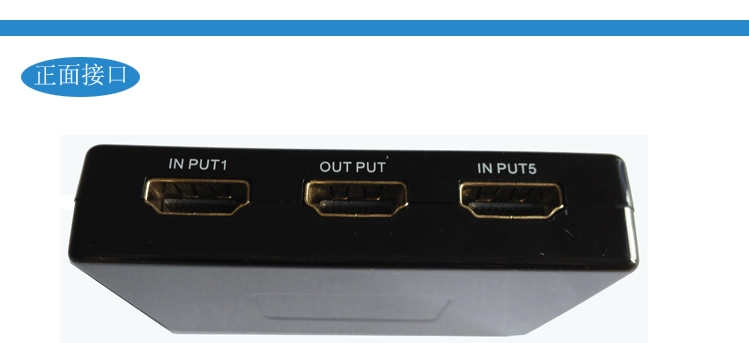

HDMI AutoSwitch 5×1 (IR Learning Function)
Introduction
This is the final edition of high performance mini HDMI Amplifier Switcher。
This kind of HDMI mini switcher not only has the key-press-switching function, but also has the intelligent function.

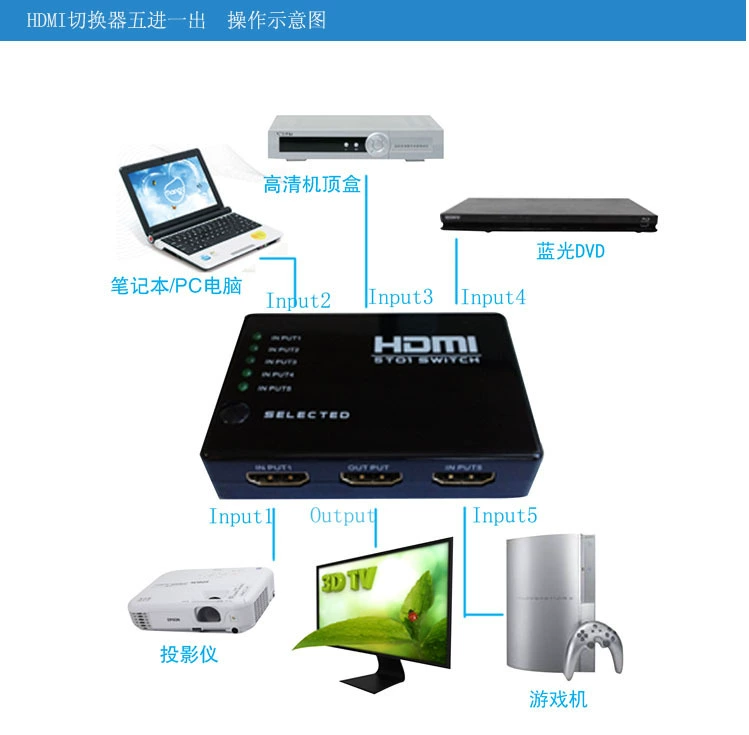

This kind of HDMI Amplifier mini Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the several sources to display units.
All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox36etc. The output sends the high definition audio/video signals to a high definition display.

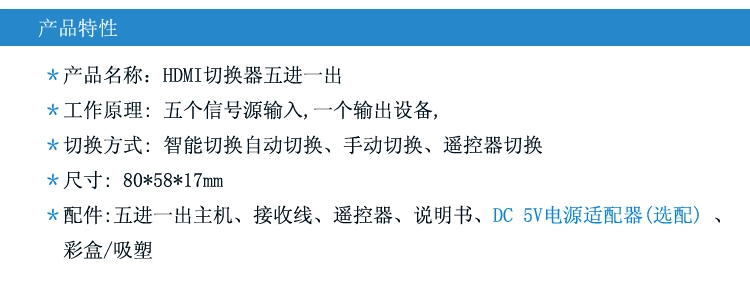

Features
This MiNi HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
（1）Support 12-bit Deep Color, full 1080p
(2) Support 3D
（3）Multifunctional on switching : intelligent or mechanical
（4）Supports with HDMI1.3b.
（5）High performance up to 2.5Gbps
（6）Supports 25Meters HDMI Cable on both ends of the Switcher
（7）Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved

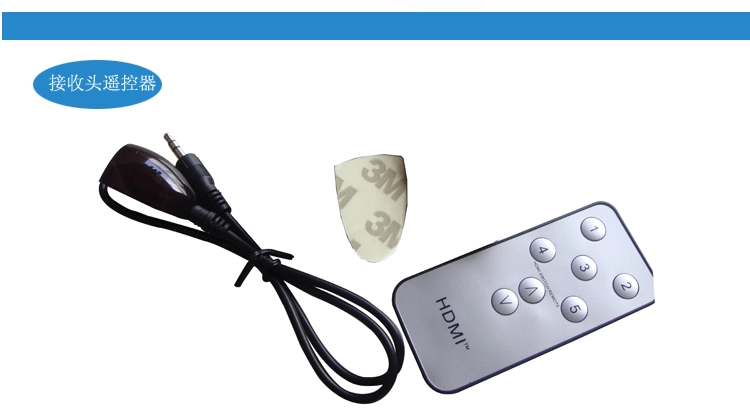

(8)The product has another advantage, infrared function for learning. The customer can use this by setting the remote control simply at home. This is the first model of amputator which has learning function.

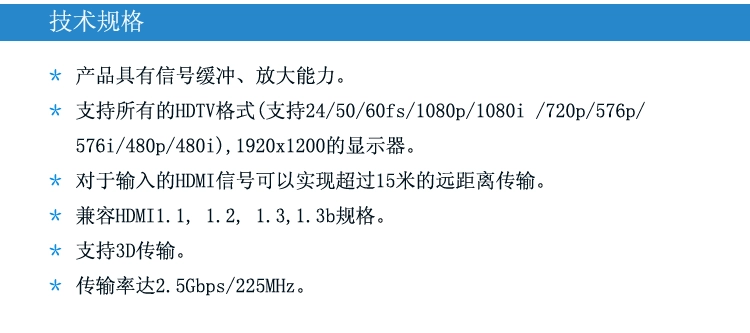

SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
MaximumSingle Link Range |
1920X1200, 1080P |
|
Output Video |
HDMI1.3b+HDCP1.0/1.1 |
|
Video format supported |
|
|
VGA |
640x480,800x600,1024x768,1920x1200 |
|
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
|
Digital Signal I/O |
|
|
HDMI Compliance |
HDMI 1.3b |
|
Operating Frequency |
50/60Hz |
|
Frequency |
|
|
VerticalFrequency Range |
60Hz |
|
Video Amplifier Bandwidth |
2.5Gpbs/250MHz |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Mechanical |
|
|
Size(H-W-D) |
80*58*17mm |
|
Weight(Net) |
145g |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0℃to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10℃to +80℃ |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|

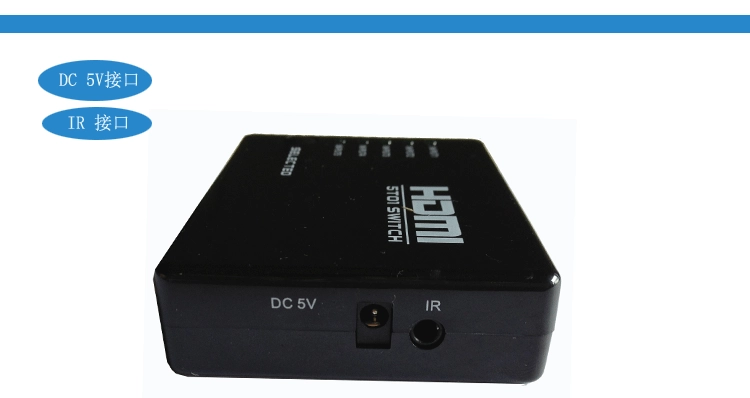

Power Requirement |
5V@1A |
|

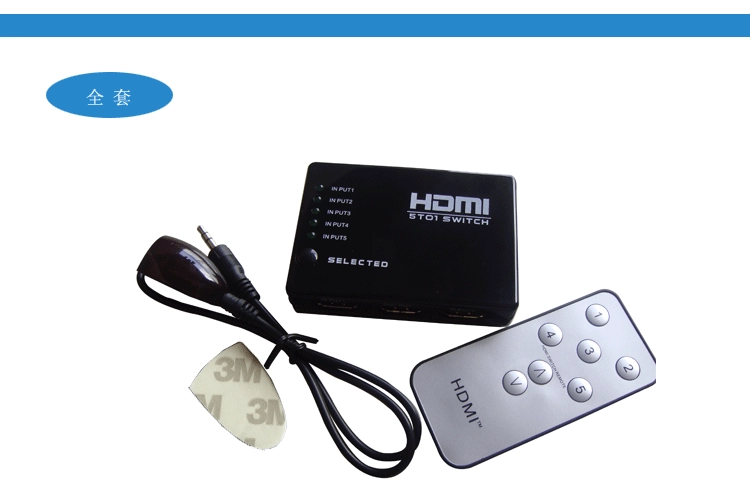

Accessories Adapter |
|
|
User Manual |
English Version |
Note: Specifications are subject to change without notice.
